KOMODO DC Fast Charging Hub, 240 to 720 kW Cabinet and Dispensers

Price range: $10,000 through $88,000

  • 240, 360, 480 or 720 kW power cabinet
  • Up to 12 two-connector dispensers share the cabinet’s power
  • Turnkey 4-dispenser hub options
  • Payment terminal and eMÖTEN Pay settlement
  • OCPP 1.6, 2.0.1 ready
  • ETL certified (UL 2202); built to order
SKU: KOMODO Category:
Description

Description

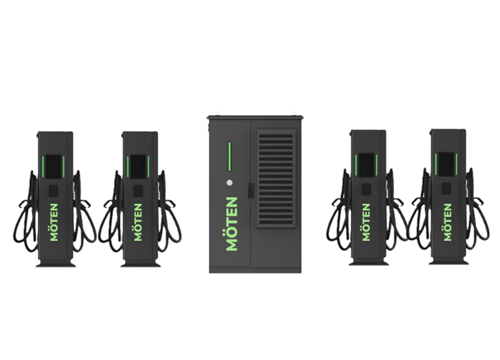

KOMODO is a split-cabinet DC charging hub: one power cabinet from 240 to 720 kW feeds up to 12 dispensers, sharing power across stalls for fleets and busy public sites.

Who it is for

Bus and truck depots, highway hubs and large public sites that need many high-power stalls from one installation.

How it is sold

KOMODO is priced in two parts: the power cabinet and the 2-connector dispensers, with turnkey cabinet-and-4-dispenser options at 240 or 360 kW. Pick the cabinet and dispenser options above, or for a full project request a quote.

Payments and software

eMÖTEN Pay, the automated settlement layer in eMÖTEN CMS, matches every paid session to the card payment behind it and pays the site owner monthly. Plans that collect payment from drivers carry a per-session fee. eMÖTEN CMS is included on every MÖTEN charger, with a $0 subscription.

Specifications

Cabinet power 240, 360, 480 or 720 kW
Options Power cabinet; cabinet with 4 dispensers (240 or 360 kW); dispenser with 2 connectors
Dispensers Up to 12 per cabinet
Output current 250 A per plug air-cooled; up to 600 A liquid-cooled
Input 480 V AC +/-15%, 3-phase, 45 to 65 Hz
Output voltage 200 to 1000 V DC
Enclosure IP54
Connectors CCS1, plus a built-in NACS cable
Display 7 inch touchscreen
Payments Payment terminal for card payments; RFID; eMÖTEN app
Connectivity Wi-Fi, 4G, Ethernet; OCPP 1.6, 2.0.1 ready
Power factor >= 0.99 above 50% load
Operating temperature -30 to +50 C (-22 to 122 F)
Certifications ETL certified (UL 2202)
Lead time Built to order, 60 to 90 days
Warranty 2-year manufacturer warranty, extendable to 5 years (2 + 3) or 10 years (2 + 8) in total; extended warranty available for purchase. Backed by a 97% uptime SLA.

2-year manufacturer warranty, extendable to 5 years (2 + 3) or 10 years (2 + 8) in total; extended warranty available for purchase. Backed by a 97% uptime SLA. Sales and support every day, 7 a.m. to midnight Eastern. Free shipping on MÖTEN hardware across the United States.

Frequently asked questions

Is the dispenser a complete charger?

No. The 2-connector dispenser pairs with a KOMODO power cabinet. Order a cabinet, or a turnkey cabinet with four dispensers, for a complete hub.

Does KOMODO avoid a transformer upgrade?

No. KOMODO draws its full rated power from the grid. For sites short on service, see XEYAR battery buffered charging.

Can KOMODO serve a bus or truck depot?

Yes. Shared cabinet power across dispensers suits depots that charge many vehicles on a schedule.
