DORADO Level 2 Home EV Charger, 48 A or 80 A, Smart Wi-Fi

Price range: $1,550 through $1,650

  • Up to 19.2 kW at 80 A, or 11.5 kW at 48 A
  • Hardwired, 25 ft SAE J1772 cable with holster
  • Wi-Fi and Bluetooth with the eMÖTEN app, free on MÖTEN chargers
  • OCPP 1.6, 2.0.1 ready
  • ETL certified (UL 2594), FCC; ENERGY STAR certified
  • IP65; 2-year warranty, free US shipping
SKU: DORADO-80S Category:
Description

Description

DORADO is our most powerful home EV charger. Choose 48 A (11.5 kW) or 80 A (19.2 kW) and charge a long-range EV overnight with time to spare, then manage every session from the eMÖTEN app.

Who it is for

Homeowners with a long daily drive, a large-battery EV or two EVs sharing one garage. The 80 A model suits homes with the panel capacity for a 100 A circuit; the 48 A model runs on a 60 A circuit.

Smart charging with the eMÖTEN app

Connect DORADO to Wi-Fi or Bluetooth and use the eMÖTEN app to start and stop sessions, schedule charging for off-peak rates and review your charging history. RFID access control keeps the charger for your household.

Installation

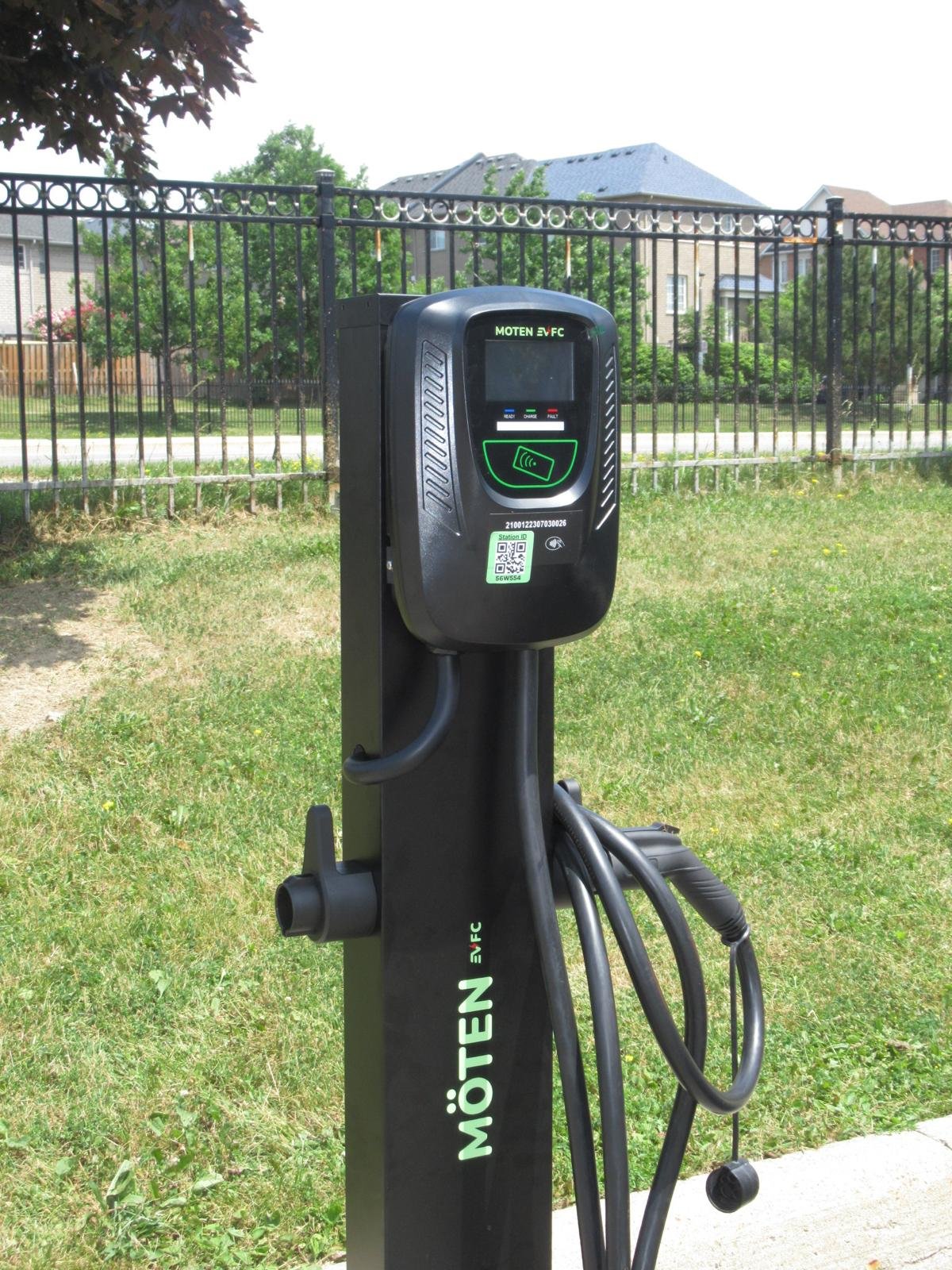

DORADO is hardwired by a licensed electrician on a 208 to 240 V split-phase circuit: a 60 A breaker for the 48 A setting or a 100 A breaker for the 80 A setting. The IP65 charger is rated for indoor and outdoor use and mounts on a wall or an optional pedestal. Check your local utility for rebates before you buy.

Current setting (DIP switch)

Set by a qualified electrician to match the circuit. The breaker must be rated for the setting, for example 80 A on a 100 A breaker.

DORADO DIP switch positions, charging current and power at 240 V
Switch Current Power at 240 V
0 8 A 1.9 kW
1 16 A 3.8 kW
2 24 A 5.8 kW
3 32 A 7.7 kW
4 40 A 9.6 kW
5 48 A 11.5 kW
6 56 A 13.4 kW
7 64 A 15.4 kW
8 72 A 17.3 kW
9 80 A 19.2 kW

Specifications

Max output 11.5 kW at 48 A, or 19.2 kW at 80 A
Input 208 to 240 V AC, 50/60 Hz, split-phase
Current setting (DIP switch) 8 to 80 A in 8 A steps (switch 0 to 9)
Circuit breaker 60 A (48 A setting) or 100 A (80 A setting)
Connector SAE J1772 (Type 1); NACS vehicles via adapter, sold separately
Cable 25 ft with holster
Installation Hardwired; wall or optional pedestal; indoor and outdoor
Connectivity Wi-Fi, Bluetooth, Ethernet, RFID
Software eMÖTEN app; OCPP 1.6, 2.0.1 ready
Protection Under- and over-voltage, RCD (CCID 20), surge, ground fault, over-current, over-temperature and control pilot fault protection
Certifications ETL certified (UL 2594, UL 2231-1 and UL 2231-2), FCC; ENERGY STAR certified (all DORADO models)
Enclosure IP65, IK08; indoor and outdoor
Operating temperature -30 to +50 C (-22 to 122 F)
Humidity Up to 95%, non-condensing
Dimensions 13.8 x 9.8 x 5.1 in; 18.1 lb net (48 A) or 19.8 lb net (80 A)
Shipping box 19.6 x 13.7 x 10.7 in, 20.3 lb (48 A); 19.6 x 13.7 x 12.4 in, 22.5 lb (80 A)
Warranty 2-year manufacturer warranty, extendable to 5 years (2 + 3) or 10 years (2 + 8) in total; extended warranty available for purchase. Backed by a 97% uptime SLA.

Download spec sheet (PDF)

2-year manufacturer warranty, extendable to 5 years (2 + 3) or 10 years (2 + 8) in total; extended warranty available for purchase. Backed by a 97% uptime SLA. Sales and support every day, 7 a.m. to midnight Eastern. Free shipping on MÖTEN hardware across the United States.

Frequently asked questions

Should I choose the 48 A or the 80 A DORADO?

Choose 80 A if your panel can support a 100 A circuit and you want the fastest home charging, up to 19.2 kW. The 48 A model needs a 60 A circuit and charges at up to 11.5 kW, which is plenty for most daily driving.

Does DORADO need an app?

No app is required to charge, but the eMÖTEN app, free on MÖTEN chargers, adds scheduling, remote start and stop, and charging history.

Will DORADO charge a Tesla?

Yes. DORADO has a J1772 connector, and Tesla or other NACS vehicles charge with a J1772 to NACS adapter, sold separately.

Is installation included?

No. DORADO is hardwired by a licensed electrician. Our team can help you plan the circuit; see the home chargers page or contact us.

Related: Home EV Chargers · Level 2 vs DC fast: choose by dwell time · NACS vs CCS: which connectors to install · EV charger rebates · Request a quote

Technical Specifications

Technical Specifications

Enclosure Material: Plastic (PC+PBT)

Enclosure Rating: NEMA Type 3R

Status Indicator: Power Present, Charging, Fault

Standards and Certifications: UL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant: Tested and connects to more than 75 OCPP platforms

Current: 80 A (19.2 kW) max, Adjustable 16A/32A/40A/48A/70A/80A

Supply circuit: 208/240 V, 100 A

Product dimensions: 13.8″ X 9.8” X 5.1”

Product weight: 22.5 LBS

Charge cable length: 25 ft

Installation: Hardwired  3-feet Cable Whip

Connector: Impact Resistant Rubberized J1772 connector

Enclosure: IP65 / IK08 for Indoor or Outdoor installation, NEMA TYPE 3R

Operating temperature: -22°F to +122°F (-30°C to +50°C)

Altitude: Up to 6,500 ft. (2,000 m)

Operating Humidity: < 95% Relative Humidity, Non-Condensing

Certifications

Certifications

Energy Star: Date Issued: November 18, 2022 Control / Certificate#: 5023388

FCC: Date Issued: 11/02/2022 FCC Identifier: 2A2RN-ACEVCN13P2

ETL: Date Issued: Jan 16, 2023 Control / Certificate#: 5005806

Standards: UL2594:2016 Ed.2; CSA C22.2#280:2016 Ed.2





What's In The Box

What's In The Box

  • Dorado EV Charger with Wall Mount
  • eMÖTEN Phone APP for Home use
  • 2 RFID Cards
  • User manual
  • Hardware for installation
  • 2 RFID cards
Warranty

Warranty

3-year limited warranty
